CRUSHING AND SCREENING
/
Systems of crushing a jaws
/
GI106C/CV DIABLO
CRUSHING
CRUSHING
GI106C/CV DIABLO

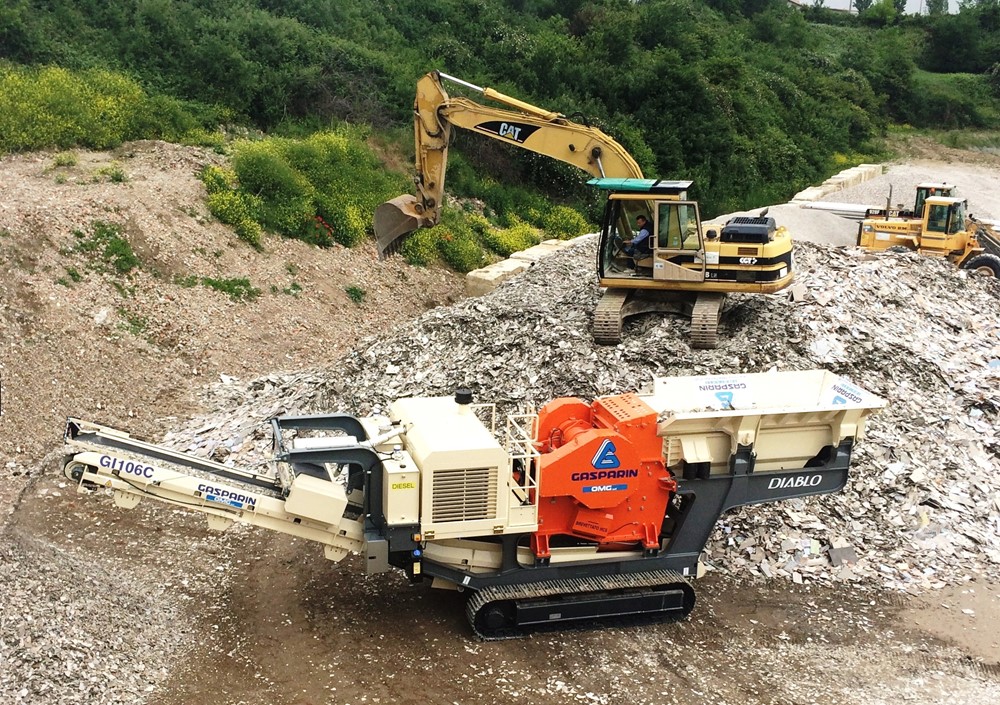

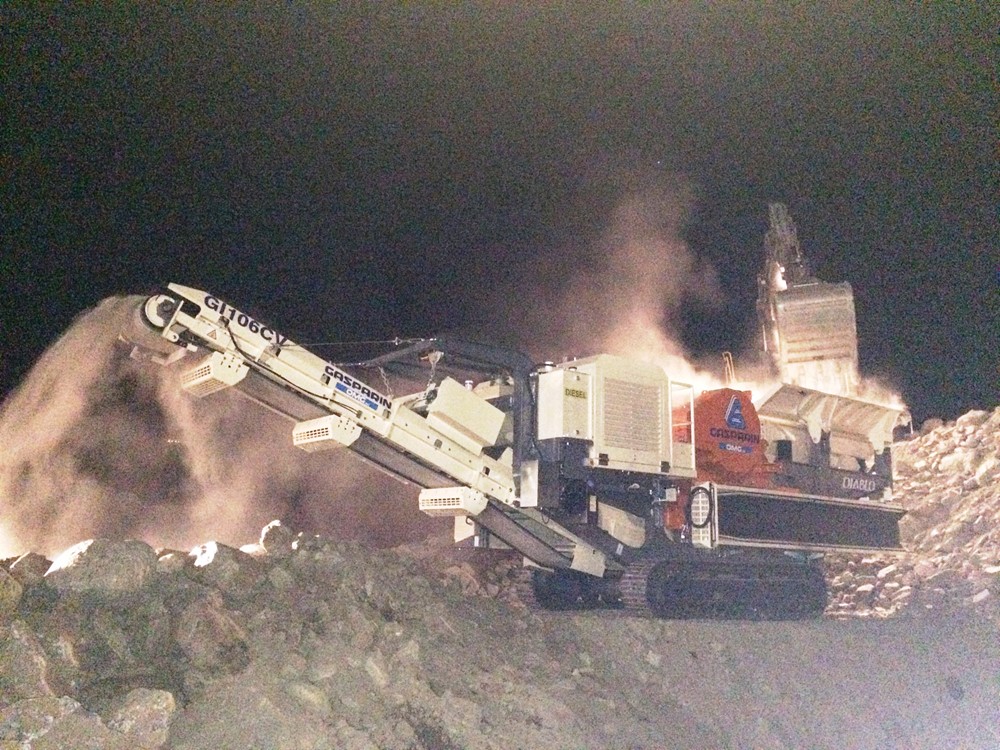

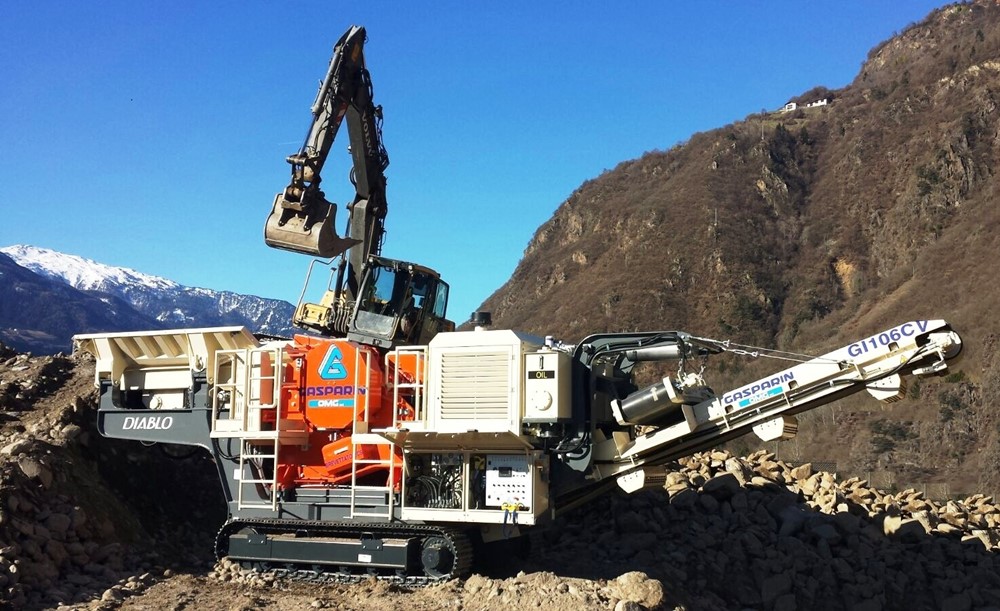

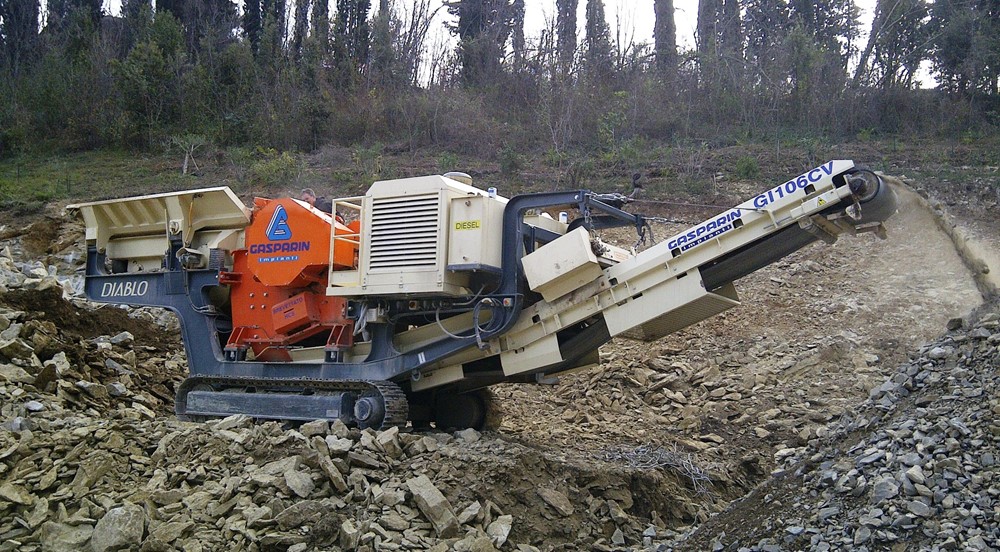

CRUSHER TRACK DIABLO
is the most modern 30 ton mobile crusher in the market. Equipped whit last generation management systems, it is easy to use and environment friendly.
The H.C.S. system check all the machine components, this means maximum performance in terms of:
Low fuel consumption
Low crushing chambers wear
High production
it means: Low running cost.
The structural integration between the chassis and jaw crusher guarantee the maximum strength to the crushing stress.
CRUSHER TRACK DIABLO
born to be a winner in quarry application and recycling.
GI106C/CV DIABLO
TECHNICAL FEATURES
Jaw crusher
1000x600 mm
Output
Until 220 t/h
High production
The new Gasparin’ s jaw crusher design
Aggressive swing jaw
Very aggressive swing jaw action, for a maximum crushing effect.
HCS (Hydraulic Crushing System)
it means full hydraulic management machine. The system check and adjust continuously the different machine’s components.
Main belt conveyor’s discharge
height: 3000 mm
Hopper
Hydraulic folding hopper with wedgelok system
Access
Easy access to the engine
Big access
Big access under the jaw crusher, for maintenance
Pre-screen
Possibility to install a pre-screen
Operative weight
Full optional version operative weight under 30 ton
